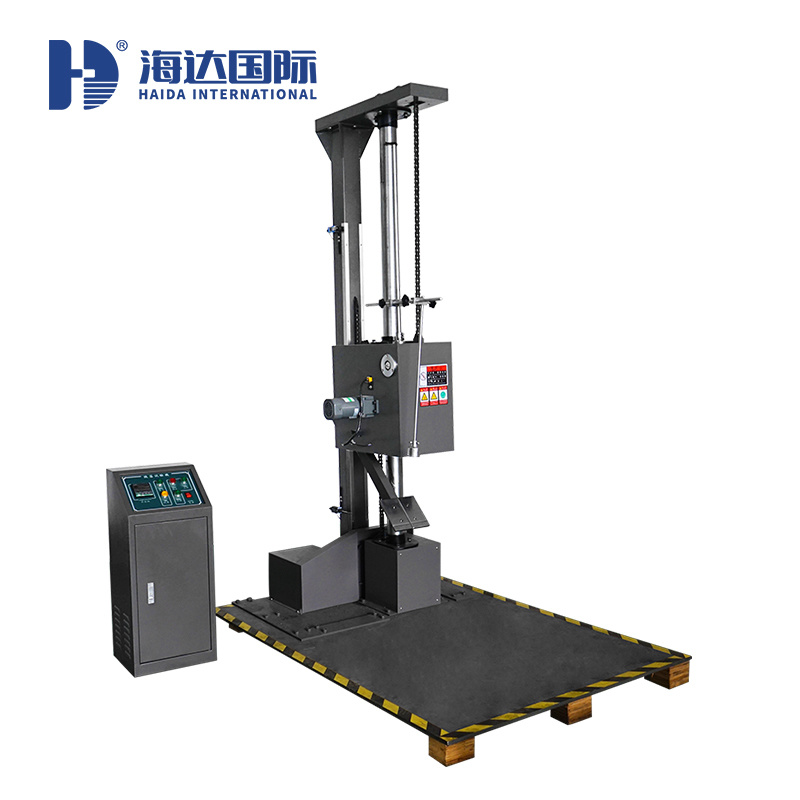

1、 Application of Single Wing Drop Testing Machine for Packaging Boxes

1. The single wing drop testing machine for packaging boxes can perform free drop tests on the surface, corners, and edges of the packaging. It is equipped with a digital height display instrument and uses a decoder for height tracking, which can provide the product's drop height with an error of no more than 2% or 10mm from the preset drop height. The machine adopts a single arm double column structure and has electric reset, electric drop, and electric lifting devices: easy to use; The hydraulic buffer device greatly improves the service life and stability of the machine. The single arm setting allows for easy placement of products, and the angle error between the impact surface and the bottom plate plane is less than or equal to 5 °.

2、 Introduction to the Single Wing Drop Testing Machine for Packaging Boxes

This machine can perform free drop tests on the surface, corners, and edges of packaging, equipped with a digital height display instrument and a decoder for height tracking, so as to provide the product's drop height with an error of no more than 2% or 10mm from the preset drop height. The machine adopts a single arm double column structure, with electric reset, electric drop, and electric lifting devices: easy to use; The hydraulic buffer device greatly improves the service life, stability, and safety of the machine. The single arm setting allows for easy placement of products, and the angle error between the impact surface and the bottom plate plane is less than or equal to 5 °. Design standards: ISO 2248, JIS Z0202-87, GB/T4857.5-92

3、 Technical parameters of single wing drop testing machine for packaging boxes

1. Drop height (mm): 300-1500

2. Maximum weight measured (kg): 65KG

3. Maximum size of specimen (mm): 800 × 800 × 800

4. Impact panel size (mm): 1700 × 1200

5. Arm size (mm): 160 × 180 × 8

6. Drop error:<2 °

7. Drop height error (mm): ± 10

8. Dimensions of the test bench (mm): approximately 1700 × 1200 × 2300

9. Weight (kg): Approximately 600

10. Power supply: AC380V 50HZ 5A

11. Power: 1.5KW

4、 Working principle of single wing drop testing machine for packaging boxes

The digital single wing drop test machine simulates the situation of different edges, corners, and surfaces falling to the ground at different heights after product packaging, in order to understand the damage situation of the product and evaluate the drop height and impact resistance that the product packaging components can withstand during the drop.

5、 Product characteristics of single wing drop testing machine for packaging boxes

1. This machine adopts a single arm double column structure, with electric reset, electric drop and electric lifting devices;

2. Easy to use; The hydraulic buffering device greatly improves the service life, stability, and safety of the machine;

3. Single arm setup allows for easy placement of products, with a drop angle impact surface and base plane angle error of less than or equal to 5;

4. The main column is made of custom-made steel, processed by external grinding, and chrome plated on the surface;

5. Taiwan ST customized chain, truly completed surface, edge, and corner drop tests;

6. Electric reset, electronic control drop and electric lifting device, easy to use;

7. Ensure the free separation of the cargo tray from the packaging test piece, achieve the free fall of the packaging test piece, minimize impact vibration, and ensure stability and reliability;

8. Configure a digital height display instrument and use a decoder for height measurement, so as to provide the product's drop height; The deviation from the preset drop height shall not exceed 2% or 10mm.
