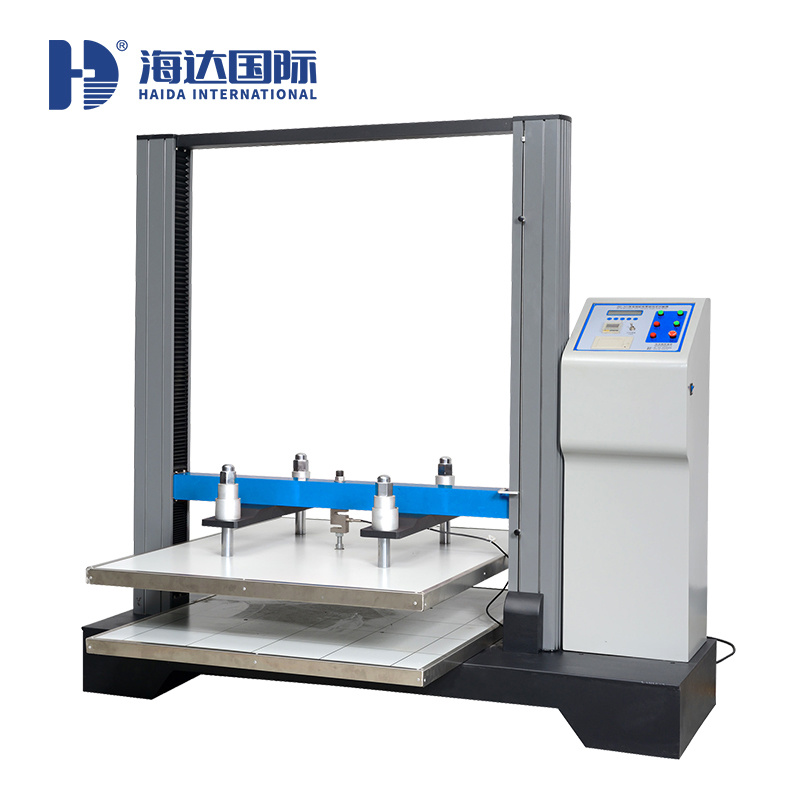

1、 Application of microcomputer based paper box compression testing machine instrument

1. The microcomputer based cardboard box compression testing machine is suitable for electronic, electrical, wire, hardware, bicycle, handbag, food, medicine, footwear, furniture, and other factories that package products in corrugated cardboard boxes. It is suitable for pressure resistance, deformation, and stacking tests of corrugated cardboard boxes, honeycomb board boxes, and other packaging components. And take into account the compression test of containers such as plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, and IBC drums.

2、 Design standard for microcomputer based cardboard compression testing machine

TAPPI-T804，JIS-20212，GB4857.3.4，ASTM-D642，QB/T1048，BS　EN　ISO　12048，GB/T4857.16，GB/T8167，GB/T8168，GB/T4857.3，GB/T4857.4

3、 Technical parameters of microcomputer based cardboard box compression testing machine

1. Allowable specimen weight: 2T

2. Decomposition degree: 1/10000

3. Accuracy: ≤ 0.5%

4. Power units: KG, LB, N switchable

5. Report items: serial number, peak value, average value, set holding value, memorable

6. Safety devices: overload protection, overvoltage protection, limit protection device

7. Structure: Taiwan AC variable frequency motor, ordinary screw rod

8. Compressed space: 1000 × 1000 × 1000

9. Compression speed standard: 10 ± 3mm/min

10. Power supply: 1x20v/50Hz

4、 Product features of microcomputer based cardboard compression testing machine

1. Taiwan AC variable frequency motor drive;

2. Using a regular screw for lifting and lowering;

3. Use high-precision explosion-proof LOAD CELL;

4. Using a microcomputer control instrument for measurement; Capable of printing test data; High precision, low price; High sensitivity, instantaneous determination of crushing and automatic shutdown.
