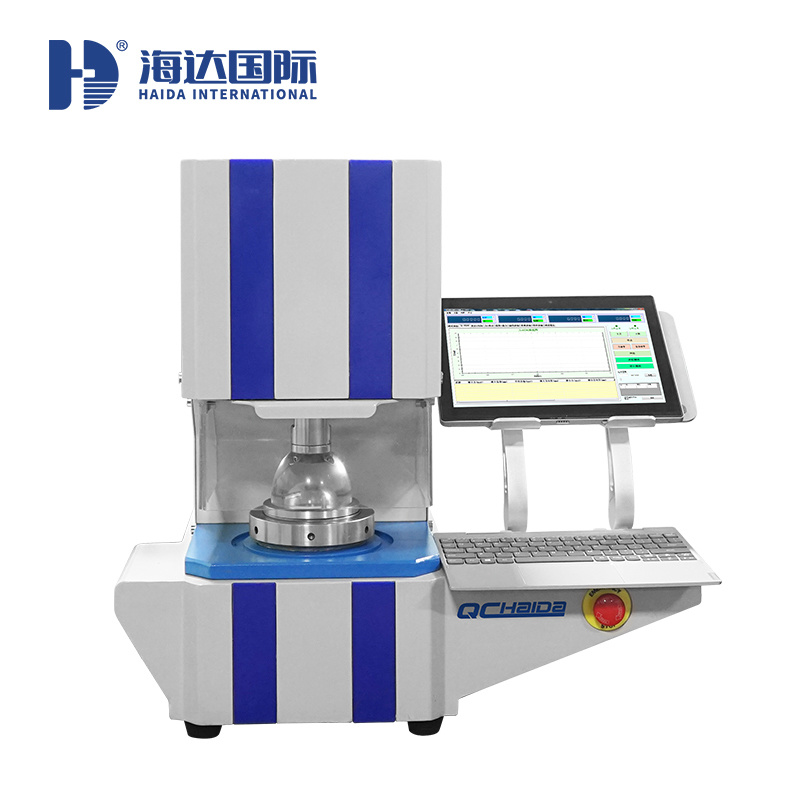

Main technical parameters of intelligent rupture strength testing machine

 1) Induction method: pressure converter;

 2) Indication method: numerical explicit;

3) Operation mode: This machine is a fully automatic testing machine, with automatic oil pressure, automatic return and automatic calculation, storage of test data and printing;

4) Control mode: wireless connection, tablet control, data synchronization display

5) Automatic clamping and releasing device, sample clamping force adjustable from 50~1200kpa;

6) Power units: kpa, Lbs/in ^ 2, kgf/cm ^ 2, with unit switching function;

7) Capacity selection: 0~56kgf/cm ^ 2 (0.1kgf/cm ^ 2)

8) Acrylic protective device, visible rupture process

9) Resolution: 0.2 kgf/cm2;

10) Clamp ring material: stainless steel SUS # 304;

11) Inner diameter of clamping ring: upper clamping ring inner diameter is Φ 30.5 ± 0.1mm, lower clamping ring inner diameter is Φ 30.5 ± 0.1mm; 12) Hydraulic oil: 100% silicone oil;

13) Pressurization speed: 170 ± 15ml/min;

14) Horsepower: 90W variable speed motor;

15) Dimensions: (L × W × H) 500 × 550 × 540mm;

16) Weight: 50kg;

17) Power supply: 1 ∧, AC220V 。
